Epoxy Encapsulated LED Gas Station Signs 7 Segment Gas Price LED Signs Yellow
| MOQ: | 1 |
| Price: | USD100.0~USD500.0 |
| Standard Packaging: | Anti-vibration foam + Cardboard box + Wooden box |
| Delivery Period: | 10-30 Working Days |
| Payment Method: | T/T |
| Supply Capacity: | 100Units/Month |
Detail Information
Place of Origin
Zhejiang,China
Brand Name
Linger
Certification
CE/ROHS
Model Number
LGPS-06
Name:
LED Gas Station Signs
PCB Material:
FR4
Segment Outcase:
ABS Plastic
Segment Inside:
Epoxy Resin Adhesive
Controller:
Wireless Remote
Led Color:
Red
Digit Size:
12inch
Display Case:
Stainless Steel
Distance:
250m
Highlight:
Epoxy Encapsulated LED Gas Station Signs
,7 Segment Gas Price LED Signs
,Gas Price LED Signs Yellow
Product Description

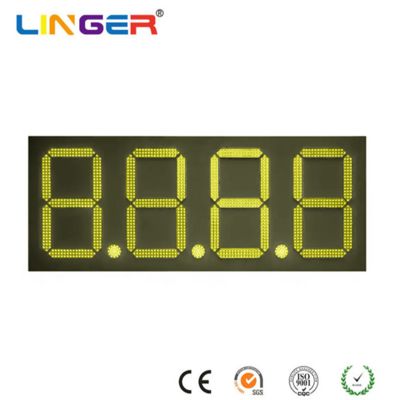

Epoxy-Encapsulated 7 segment Digits Led Gas Price Signs Outdoor
This high-visibility gas price sign is engineered for reliable, long-lasting outdoor performance. It features large, bright 7-segment LED digits that ensure crystal-clear price display day and night, effectively attracting customers from a distance.
The entire electronic module is securely housed within a rugged casing constructed from high-grade ABS plastic. This material provides exceptional resistance against the elements, including UV radiation, rain, moisture, and extreme temperature fluctuations. The ABS enclosure is also impact-resistant and non-corrosive, offering superior protection against accidental bumps and harsh weather conditions, significantly enhancing the product's lifespan.
Designed for easy installation and low maintenance, this sign is the ideal, cost-effective solution for gas stations, fuel pumps, and forecourts seeking a durable and highly legible method to display fuel prices.
Technical Specifications
| PARAMETER | VALUE |
|---|---|
| LED to LED Digit Height | 320mm |
| LED to LED Digit Width | 173mm |
| Digit Height with Enclosure | 340mm |
| Digit Width with Enclosure | 192mm |
| Total LED Count Per Digit | 175pcs |
| Led Pitch | 12mm |
| PCB Material | FR4 |
| PCB Thickness | 1.6mm |
| Segment Encased Material | ABS Plastic |
| Segment Inside Encased | Epoxy Resin Adhesive |
| Hardware Material | Stainless Steel |
| Communication | Wireless Controller (470Mhz), RS485 |
| Brightness Control Manual | 6 Level |
| Luminous Intensity LED | 4000 - 9200 mcd |
| LED lifetime | >100,000 hours |
| Operating Voltage | DC12V |
| Power Consumption | <60 watts |
| Operating Temperature | -10°C to +60°C |
| Wireless Range | >250m |
| LED Color Option | Red/Green/Yellow/White/Blue |
| IP Rating LED Segments | IP68 |
Frequently Asked Questions
Q1: Why is an ABS plastic enclosure important for an outdoor gas price sign?
ABS plastic is crucial because it provides a lightweight yet extremely durable and non-corrosive shield. It protects the sensitive electronic components inside from rain, snow, humidity, and UV rays from the sun, preventing rust, fading, and weather-related damage for years of reliable service.
Q2: How do the 7-segment LEDs benefit a gas price sign compared to other displays?
7-segment LEDs are ideal for numbers because they offer exceptional clarity and readability from very long distances, both in bright daylight and at night. Their simple, bold design eliminates visual clutter, allowing drivers to instantly and accurately read the price without confusion.
Q3: Are these signs difficult to install and maintain?
No, they are designed for straightforward installation, typically mounting easily onto existing price poles or frameworks. Their primary maintenance advantage is their durability and long life; the ABS case minimizes physical damage, and the energy-efficient LEDs have an extremely long lifespan, requiring very little upkeep.
Q4: Can these signs withstand extreme temperatures?
Yes, high-quality ABS-encased signs are engineered to perform reliably in a wide range of temperatures. The ABS plastic itself is resistant to thermal expansion and contraction, and the internal components are rated to function in both freezing cold winter conditions and hot summer heat.
Advantages
Superior All-Weather Durability
The high-impact ABS plastic enclosure provides excellent protection against rain, snow, moisture, dust, and harmful UV rays. This robust housing prevents rust, corrosion, and fading, ensuring the sign remains functional and legible for years in harsh outdoor environments.
Exceptional Long-Distance Readability
The bright, high-contrast LED digits in a classic 7-segment format offer crystal-clear visibility both day and night. This allows potential customers to easily see fuel prices from a distance, aiding in their decision-making process and driving business.
Low Maintenance & Energy Efficiency
Built with long-lasting LEDs and protected by a durable shell, these signs require minimal upkeep. They are designed for reliability and consume very little power compared to other lighting technologies, resulting in lower operating costs over their lifespan.
Lightweight & Easy Installation
Despite its strength, ABS plastic is relatively lightweight. This makes the sign easier and safer to mount on existing poles or structures than heavier metal alternatives, often reducing installation time and complexity.
