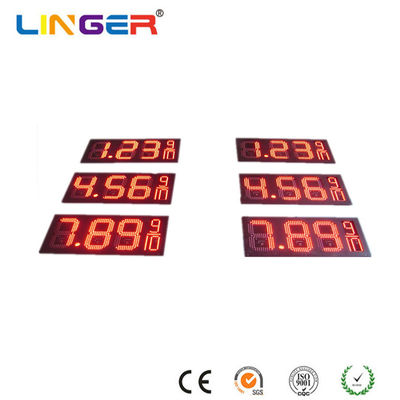

433mhz Frequency Fuel Price Board Customized Gas Station LED Display With External Antenna
| MOQ: | 1Piece |
| Price: | USD100.0-USD350.0 |
| Standard Packaging: | Anti-vibration cotton+Carton+Wooden Case |
| Delivery Period: | 10-20 Working Days |
| Payment Method: | T/T |
| Supply Capacity: | 500PCS /Month |
Detail Information
Place of Origin
Jiaxing,Zhejiang,China
Brand Name
Linger
Certification
CE/ ROHS
Model Number
LGPS-03
Name:
Fuel Price Board
LED Color:
RGY Color
Antenna:
High-gain
PCB Thickness:
1.6mm
Led:
Ultra-wide Angle
Power Plug:
USA/EU/CN/AUS
Wireless Range:
> 320meters
Assemble Method:
Customized
Highlight:
433MHz Fuel Price Board
,Fuel Price Board Customized
,Gas Station LED Display 433mhz
Product Description
433MHz Frequency Electronic LED Gas Price Sign With External Antenna
Product Attributes
| Attribute | Value |
|---|---|
| LED Color | RGY Color |
| Antenna | High-gain |
| PCB Thickness | 1.6mm |
| Led | Ultra-wide Angle |
| Power Plug | USA/EU/CN/AUS |
| Wireless range | > 320meters |
| Assemble Method | Customized |
Product Description
The 1.6mm FR4 PCB Digit Electronic LED Gas Price Sign is a premium, high-performance solution designed for durability and superior visibility in demanding outdoor environments. Featuring a robust 1.6mm thick FR4 fiberglass PCB, this sign offers exceptional structural integrity and resistance to warping, moisture, and temperature fluctuations, ensuring long-term reliability in all weather conditions.
Engineered with high-intensity LED digits, the display delivers bright, uniform illumination for maximum visibility both day and night, even in direct sunlight. The UV-resistant overlay protects against fading and environmental wear, while the weatherproof housing (IP65 rated) safeguards internal components from dust, rain, and corrosion.
Ideal for modern fuel retailers, this ultra-durable, high-visibility LED sign combines cutting-edge PCB construction with advanced display technology for unmatched performance and longevity.
Technical Specifications
| DIGIT SIZE | DIGIT HEIGHT(mm) | DIGIT WIDTH(mm) | LED QTY(pcs) | VOLTAGE |
|---|---|---|---|---|
| 4'' | 124 | 75 | 42 | DC5V |
| 6'' | 161 | 103 | 64 | DC5V |
| 8'' | 201 | 119 | 98 | DC5V/12V |
| 10'' | 254 | 152 | 140 | DC5V/12V |
| 12'' | 304 | 177 | 182 | DC5V/12V |
| 15'' | 381 | 216 | 245 | DC5V/12V |
| 16'' | 412 | 235 | 350 | DC12V |
| 20'' | 500 | 281 | 434 | DC12V |
| 24'' | 600 | 350 | 581 | DC12V |
| 30'' | 750 | 438 | 840 | DC12V |
Data Sheet
| Feature | Specification |
|---|---|
| Digit Color Option (Single Color) | Red /Green/Yellow/White/Blue |
| Digit Size Option | 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30'' |
| Price Format | 8.889/ 8.889/10 / 8.88/ 88.88/ 888.8/888.88... |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Controller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Remote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Heat dissipation | With Fan |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
Frequently Asked Questions
Q1: Why does this system use an external antenna instead of built-in?
The external antenna provides three critical advantages:
- 50% stronger signal penetration through concrete canopies and fuel storage areas
- Adjustable positioning (up to 3m cable) for optimal line-of-sight transmission
- Replaceable/upgradable design for future network expansions
Q2: How far can the external antenna transmit price updates?
With standard configuration:
- 300m maximum range in open areas (vs. 100m for internal antennas)
- 200m effective range in urban stations with obstacles
- Stable through 3+ concrete walls
Q3: What makes this antenna system weather-resistant?
It features:
- Military-grade SMA connector (salt fog corrosion resistant)
- UV-stabilized radome withstands 150km/h winds
- -40°C to +85°C operating range
- Self-draining design prevents water accumulation
Advantages of External Antenna
Tool-Free Maintenance - Features screw-on SMA connectors that enable instant antenna replacement without technical support. No wiring/crimping required - simply unscrew the old unit and attach the new one (＜30秒 swap time)
Double-Range Boost - Upgrades standard 100m communication to 250m+ effective range. 2× stronger signal penetration through concrete/steel structures versus internal antennas
All-Weather Durability - IP67 waterproof rating (submersible up to 1m for 30 minutes). Corrosion-resistant brass connectors with silicone O-ring seals
Plug-and-Play Scalability - Compatible with high-gain antenna upgrades (5dBi->10dBi) for specialized deployments. Maintains watertight seal even during antenna changes
